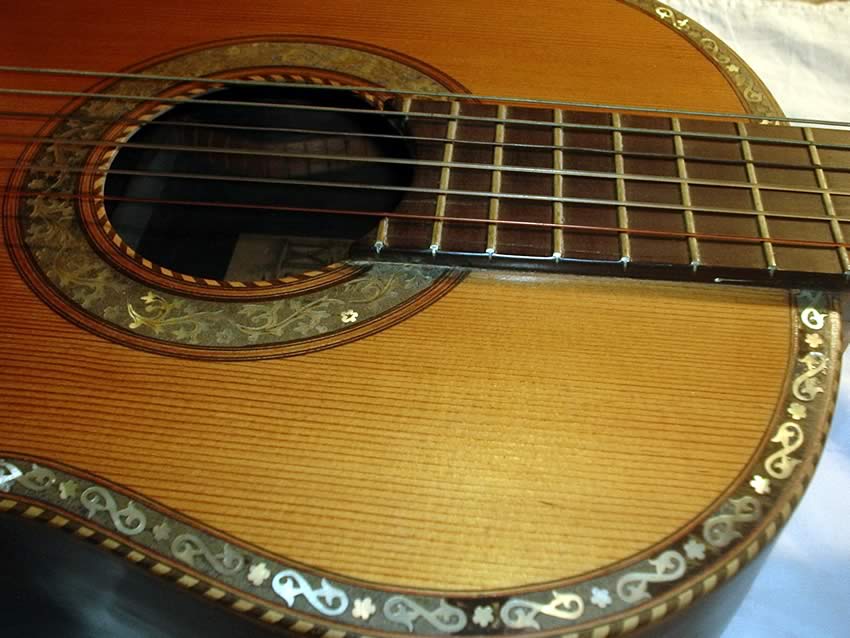

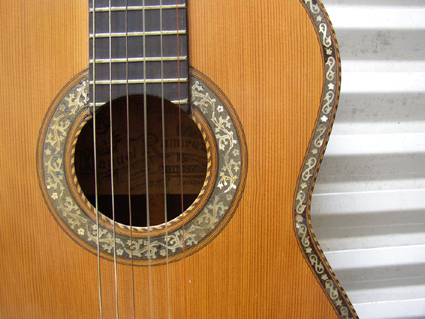

Top - Tapa - Tampo - Decke - Table d´harmonie - トップ
Pino abeto alemán / German Spruce

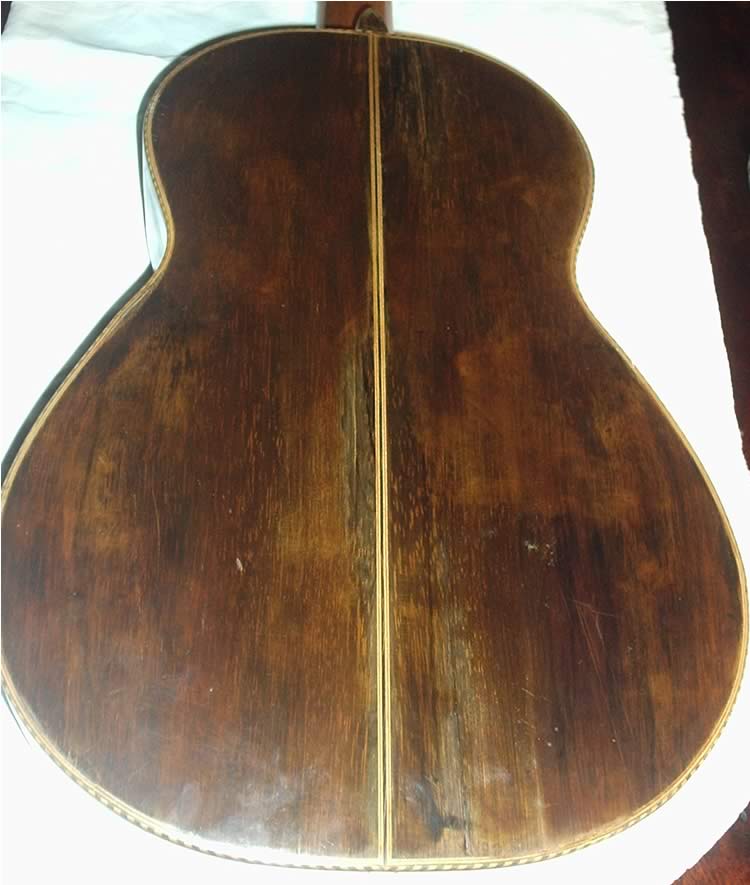

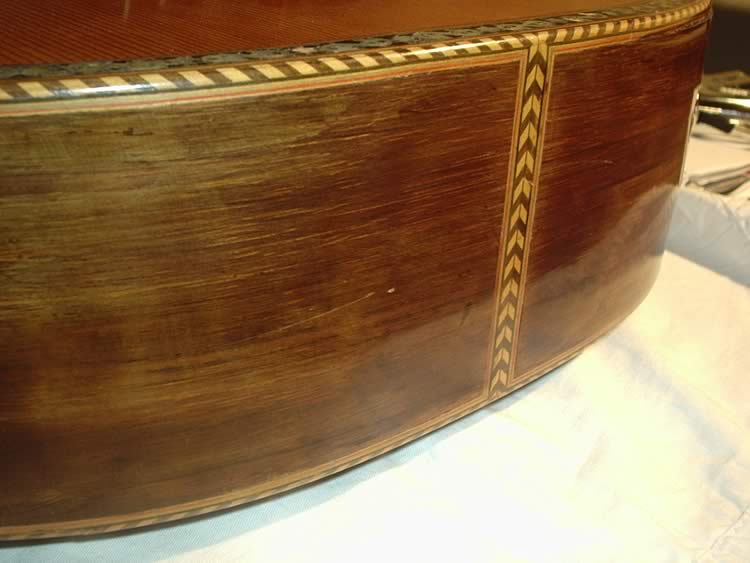

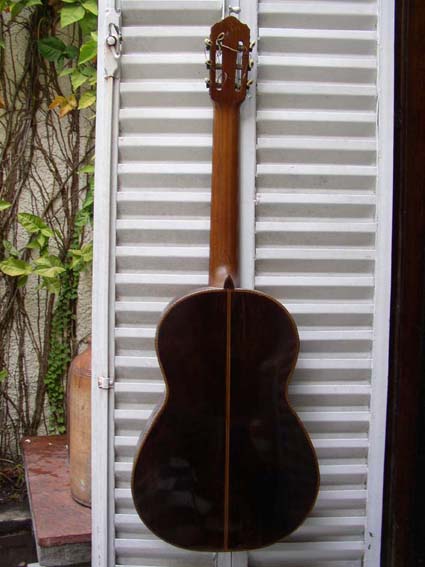

Back and Sides - Fondo y Aros - Fundo e Lateral ou faixas -
Fond Éclisse - Fondo - バックとボディサイド
Jacarandá de Bahia (Brasil) / Rosewood from Bahia (Brasil)
Fingerboard - Diapason - Escala - Touche -
Tastiera - フィンガーボード
Ebano / Ebony
Details - Detalles - Detalhes - Détails - Particolari - 詳細
Measures:
string lenght (tiro): 630 mm
total lenght : 950 mm
body lenght : 460 mm
top width in fingerboard begin : 250 mm
top width in hole (boca) : 212 mm
top width in bridge : 330 mm
width of guitar (sides): 82 mm
beetween 1 and 6 string in bridge: 52 mm
beetween 1 and 6 string in "cejuela" (nut): 40 mm |
